Specification and ordering information
| Specification | Details | Ordering note |
|---|---|---|
| Product designation | Insulating Washers | Insulating washers are supplied to a material and dimensional specification for the intended fastening assembly. |
| Ordering dimensions and construction | Insulating material; bore; outside diameter; thickness; backup washer requirement | Use the approved drawing, standard or material designation. |
| Supply basis | Specification-based quotation | Confirm the construction, inspection scope, quantity and delivery requirements in the quotation. |
Product photographs and construction details

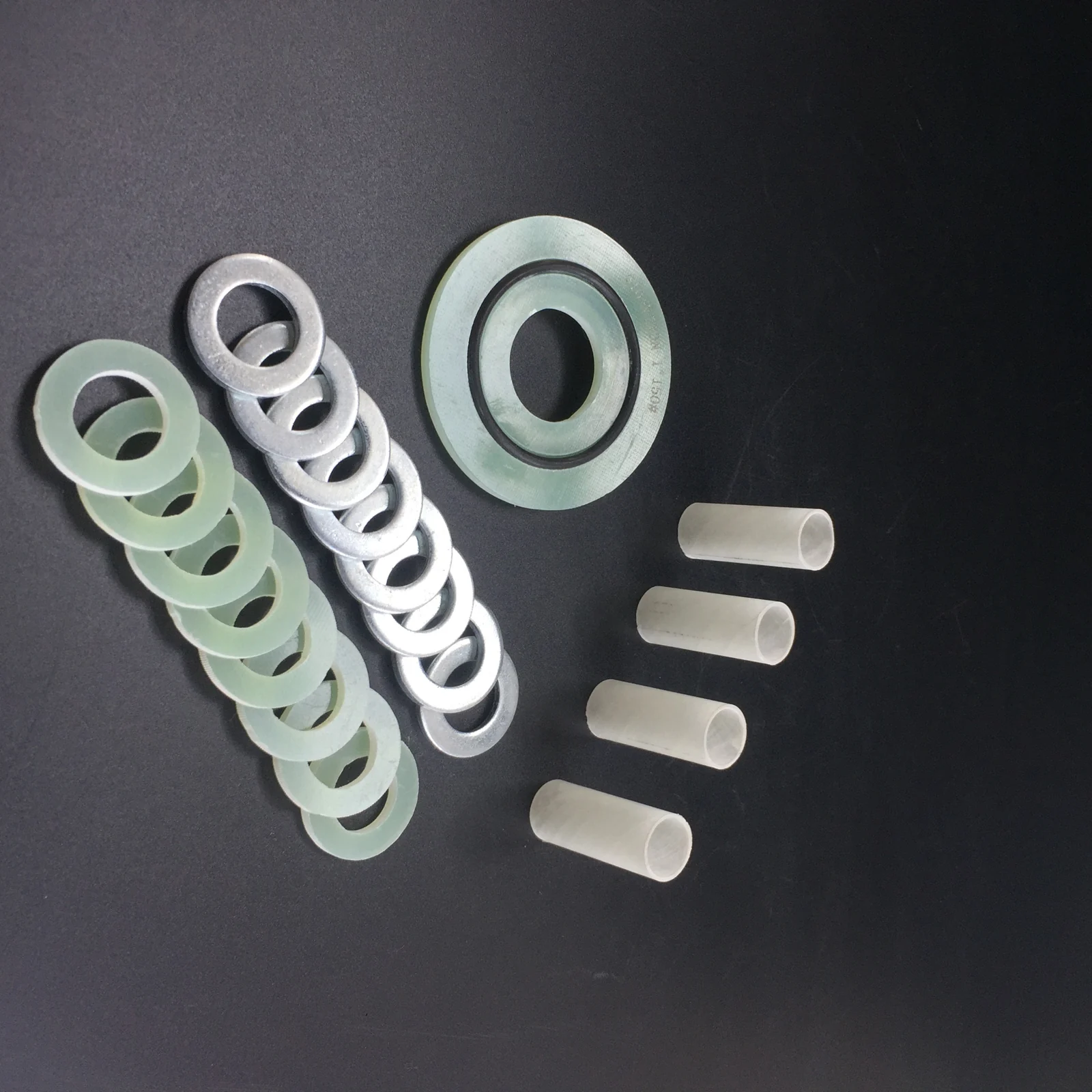

Insulating washers are shown with sleeves and metal backup washers; these components have different functions within the bolt-isolation assembly.
Define the insulating washers requirement
Insulating washers are supplied to a material and dimensional specification for the intended fastening assembly.
| Ordering field | Required information |
|---|---|
| Insulating material | State the required designation or value for each order line. |
| bore | State the required designation or value for each order line. |
| outside diameter | State the required designation or value for each order line. |
| thickness | State the required designation or value for each order line. |
| backup washer requirement | State the required designation or value for each order line. |
Fit, inspection and installation review
Confirm the complete washer stack and electrical inspection criteria. Keep parts clean and dry before installation.
State the dimensional tolerances and acceptance criteria that apply to the selected item. Request material identification, inspection records or an agreed sample where these form part of the purchase specification.
Custom requirements and quotation scope
Send the insulating washers specification with the drawing revision and quantity for each item. Include the delivery destination, required date, sample requirements and the documents that must accompany the order.
MOQ, lead time, sample scope and payment terms are confirmed in the itemized quotation. State EXW, FOB or CIF with the named place or port when requesting a shipping basis. Any custom processing, tooling and independent inspection should be identified separately.
Send the specification to Cindy ↗Purchasing questions
What information is needed to quote insulating washers?
Insulating material; bore; outside diameter; thickness; backup washer requirement. Send the drawing revision and item quantities together.
What should be checked before ordering?
Confirm the complete washer stack and electrical inspection criteria. Keep parts clean and dry before installation.
How are samples, MOQ and lead time confirmed?
Provide the selected specification, sample purpose, quantities and delivery destination. The quotation identifies the sample scope, MOQ, production or procurement timing and requested shipping terms for that order.
Discuss insulating washers with Cindy
Contact Kaxite in Ningbo, China with the item list, drawings and delivery requirements.
