Specification and ordering information
| Specification | Details | Ordering note |
|---|---|---|
| Product designation | Insulating Sleeves | Insulating sleeves separate the bolt from the surrounding flange hole in a specified assembly. Sleeve length and wall dimensions must match that assembly. |
| Ordering dimensions and construction | Sleeve material; inside diameter; outside diameter; length; bolt and flange details | Use the approved drawing, standard or material designation. |
| Supply basis | Specification-based quotation | Confirm the construction, inspection scope, quantity and delivery requirements in the quotation. |
Product photographs and construction details

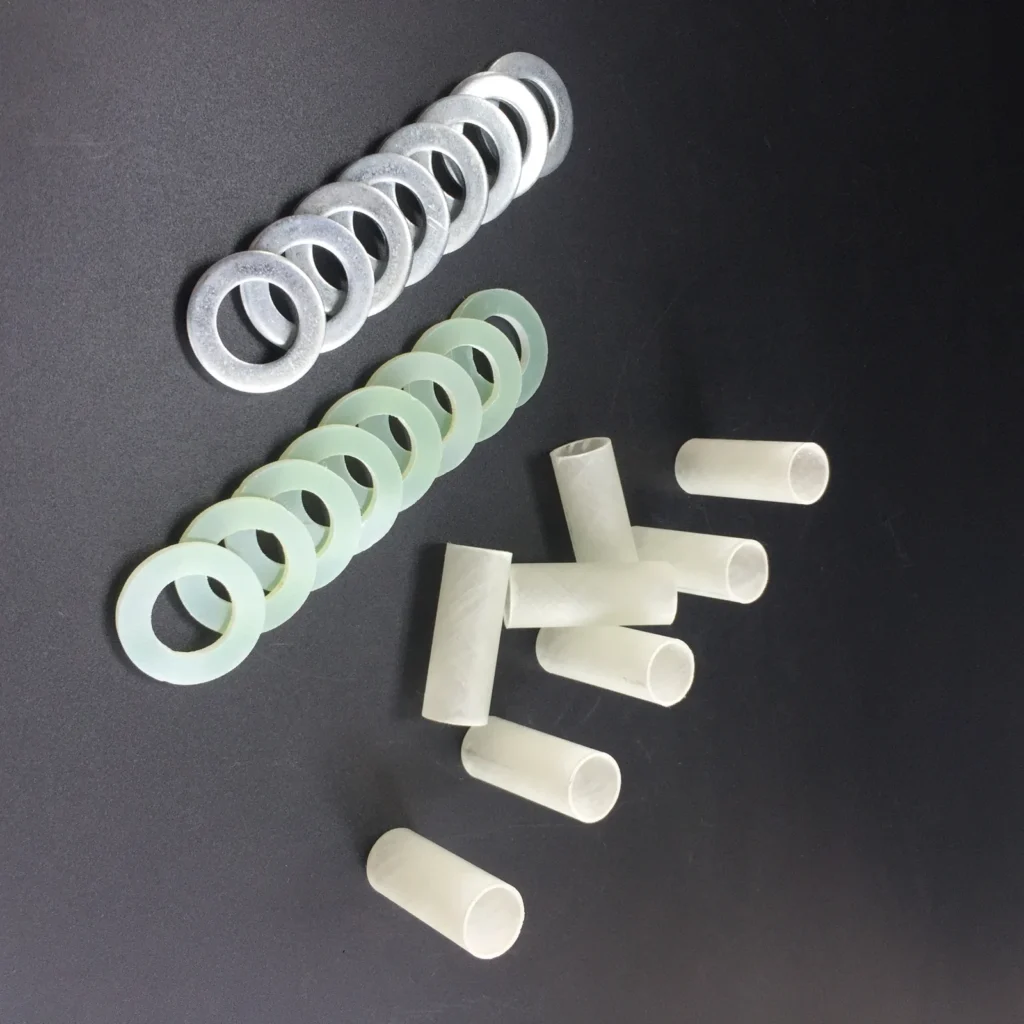

Sleeves are shown alongside insulating and metal backup washers. Order sleeve material, bore, outside diameter and length as separate fields.
Define the insulating sleeves requirement
Insulating sleeves separate the bolt from the surrounding flange hole in a specified assembly. Sleeve length and wall dimensions must match that assembly.
| Ordering field | Required information |
|---|---|
| Sleeve material | State the required designation or value for each order line. |
| inside diameter | State the required designation or value for each order line. |
| outside diameter | State the required designation or value for each order line. |
| length | State the required designation or value for each order line. |
| bolt and flange details | State the required designation or value for each order line. |
Fit, inspection and installation review
Inspect sleeve ends and fit before assembly. Avoid damage when inserting bolts and follow the approved kit layout.
State the dimensional tolerances and acceptance criteria that apply to the selected item. Request material identification, inspection records or an agreed sample where these form part of the purchase specification.
Custom requirements and quotation scope
Send the insulating sleeves specification with the drawing revision and quantity for each item. Include the delivery destination, required date, sample requirements and the documents that must accompany the order.
MOQ, lead time, sample scope and payment terms are confirmed in the itemized quotation. State EXW, FOB or CIF with the named place or port when requesting a shipping basis. Any custom processing, tooling and independent inspection should be identified separately.
Send the specification to Cindy ↗Purchasing questions
What information is needed to quote insulating sleeves?
Sleeve material; inside diameter; outside diameter; length; bolt and flange details. Send the drawing revision and item quantities together.
What should be checked before ordering?
Inspect sleeve ends and fit before assembly. Avoid damage when inserting bolts and follow the approved kit layout.
How are samples, MOQ and lead time confirmed?
Provide the selected specification, sample purpose, quantities and delivery destination. The quotation identifies the sample scope, MOQ, production or procurement timing and requested shipping terms for that order.
Discuss insulating sleeves with Cindy
Contact Kaxite in Ningbo, China with the item list, drawings and delivery requirements.
