Specification and ordering information
| Specification | Details | Ordering note |
|---|---|---|
| Product designation | G10 Washers | G10 washers are drawing-based insulating components. Specify the laminate designation and the dimensions of the complete washer stack. |
| Ordering dimensions and construction | Laminate designation; inside diameter; outside diameter; thickness; stack drawing | Use the approved drawing, standard or material designation. |
| Supply basis | Specification-based quotation | Confirm the construction, inspection scope, quantity and delivery requirements in the quotation. |
Product photographs and construction details

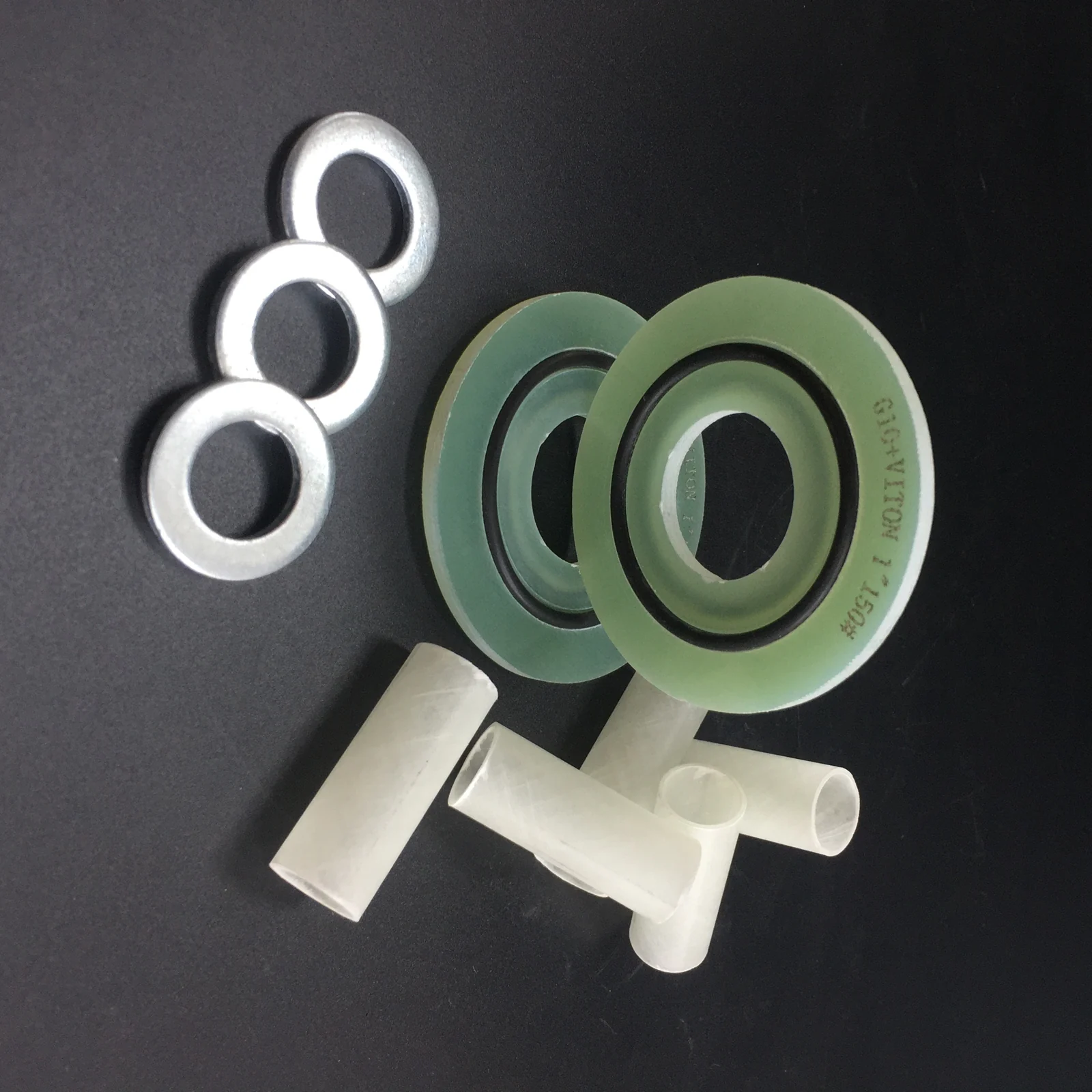

The photograph shows a flange-isolation component assortment. Identify the washer dimensions and laminate grade separately from the sleeves and metal backup washers.
Define the g10 washers requirement
G10 washers are drawing-based insulating components. Specify the laminate designation and the dimensions of the complete washer stack.
| Ordering field | Required information |
|---|---|
| Laminate designation | State the required designation or value for each order line. |
| inside diameter | State the required designation or value for each order line. |
| outside diameter | State the required designation or value for each order line. |
| thickness | State the required designation or value for each order line. |
| stack drawing | State the required designation or value for each order line. |
Fit, inspection and installation review
Check dimensions and edge condition. Keep insulating washers separated from steel backup washers in the installation kit.
State the dimensional tolerances and acceptance criteria that apply to the selected item. Request material identification, inspection records or an agreed sample where these form part of the purchase specification.
Custom requirements and quotation scope
Send the g10 washers specification with the drawing revision and quantity for each item. Include the delivery destination, required date, sample requirements and the documents that must accompany the order.
MOQ, lead time, sample scope and payment terms are confirmed in the itemized quotation. State EXW, FOB or CIF with the named place or port when requesting a shipping basis. Any custom processing, tooling and independent inspection should be identified separately.
Send the specification to Cindy ↗Purchasing questions
What information is needed to quote g10 washers?
Laminate designation; inside diameter; outside diameter; thickness; stack drawing. Send the drawing revision and item quantities together.
What should be checked before ordering?
Check dimensions and edge condition. Keep insulating washers separated from steel backup washers in the installation kit.
How are samples, MOQ and lead time confirmed?
Provide the selected specification, sample purpose, quantities and delivery destination. The quotation identifies the sample scope, MOQ, production or procurement timing and requested shipping terms for that order.
Discuss g10 washers with Cindy
Contact Kaxite in Ningbo, China with the item list, drawings and delivery requirements.
