Construction and order identification
| Specification | Details | Ordering note |
|---|---|---|
| Product construction | Lens Ring Gaskets | A lens ring is not an oval or octagonal RTJ ring. Send the seating drawing and complete cross-section rather than a ring diameter without profile details. |
| Ordering details | Seating drawing; ring cross-section; metal grade | diameters; surface requirements |
| Supply scope | Specified material, form and drawing-based requirements | Identify each item and quantity separately. |
| Manufacturing source | Kaxite-owned factory | Contact Cindy for the product-specific manufacturing and inspection review. |
Choose the correct construction for the job
A lens ring is not an oval or octagonal RTJ ring. Send the seating drawing and complete cross-section rather than a ring diameter without profile details.

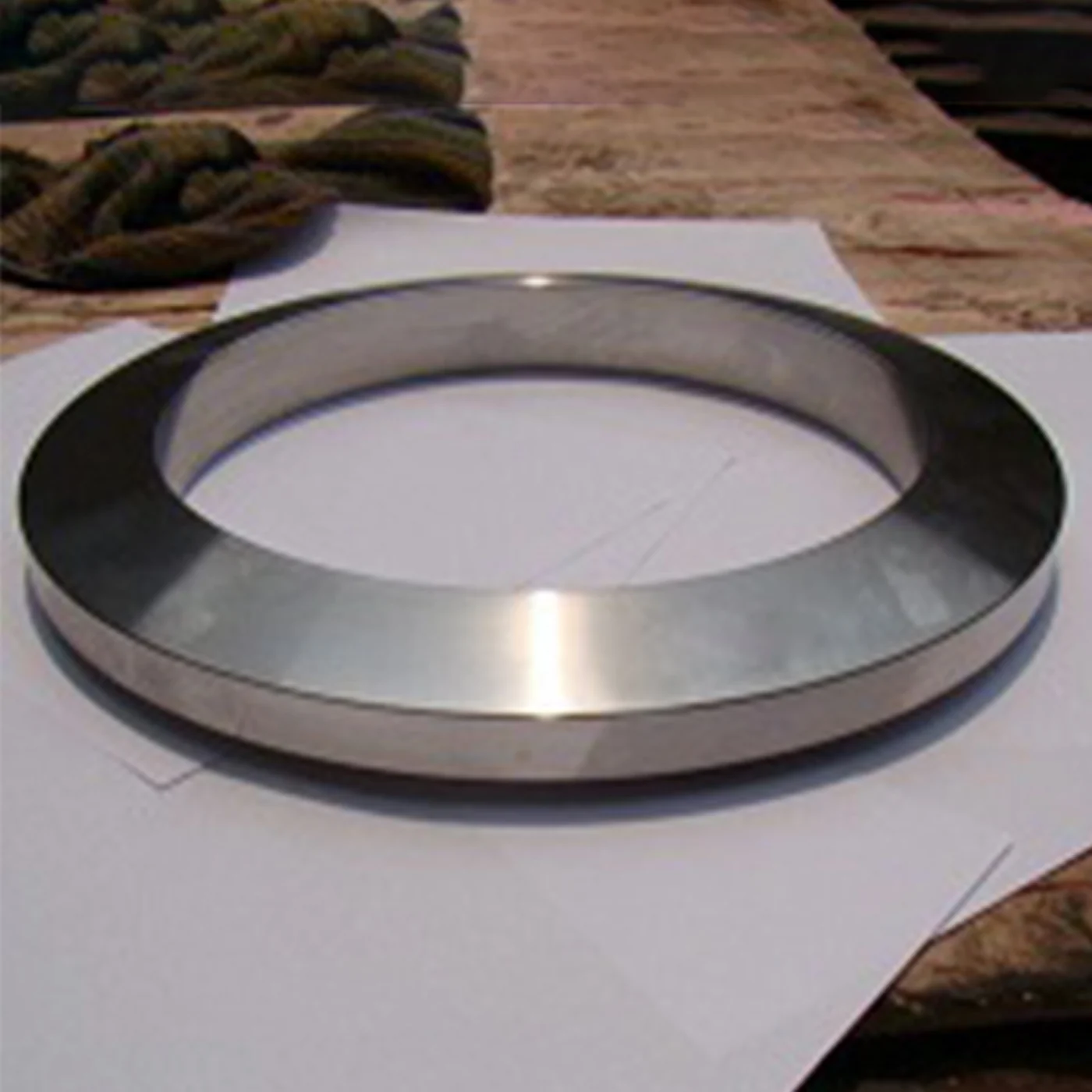

Lens Ring Gaskets — product details
Material, construction and ordering options
- Lens Ring Gaskets
Inspection and documents for the selected item
Define the profile, surface finish and material records needed for the actual ring. Inspect contact surfaces before assembly.
Identify the drawing revision, acceptance criteria and the records that must accompany the order. If an independent inspection, witness point or special test is required, include its method and scope in the RFQ.
Discuss inspection documents ↗Custom supply, samples and purchasing details
Send seating drawing; ring cross-section; metal grade; diameters; surface requirements. Add the intended equipment or assembly, the operating information relevant to material selection and the required quantity for each item.
The quotation should distinguish material supply, processing, tooling, samples and inspection records. Request the MOQ, lead time and payment schedule for the agreed scope, with EXW, FOB or CIF and the named destination where applicable.
Send drawings and quantities ↗Handling, installation and replacement
Protect machined sealing surfaces from impact and corrosion. Assess the mating seats before fitting a replacement.
Related products
Solid Metal Gaskets
Solid metal gaskets are manufactured from a specified metal and finished to a drawing or standard profile. Alloy, hardness requirements and seating geometry need to be reviewed together.
- Product construction
- Solid Metal Gaskets
- Ordering details
- Metal designation; thickness; ID and OD
Spiral Wound Gaskets
A semi-metallic gasket combining a wound metal strip with a compressible filler.
- Construction
- Basic R, IR, CG and CGI
- Winding / filler
- Stainless steel winding with graphite or PTFE filler options
Ring style, winding alloy and filler must match the flange specification.
Ring Joint Gaskets (RTJ)
Machined metal rings for matching ring-joint flange grooves.
- Profiles
- Oval, octagonal, RX and BX
- Identification
- Ring number and specified metal
A standard reference identifies dimensions or design requirements; it does not certify every material for the service.
No products match. Clear your search or send your requirements.
Compare other constructions in this range
- Solid Metal Gaskets: Solid metal gaskets are manufactured from a specified metal and finished to a drawing or standard profile. Alloy, hardness requirements and seating geometry need to be reviewed together.
- Spiral Wound Gaskets: A semi-metallic gasket combining a wound metal strip with a compressible filler. Select the ring configuration, winding alloy and filler together with the flange specification.
- Ring Joint Gaskets (RTJ): Machined metal rings for matching ring-joint flange grooves. A ring number and profile are needed to identify the gasket; pipe size alone is not enough.
Discuss lens ring gaskets with Cindy
Contact Kaxite in Ningbo, China with your specification, quantities and delivery requirements.
Request a quotation ↗
