Specifications
| Specification | Details | Ordering note |
|---|---|---|
| Product form | Aramid braid; PTFE-impregnated and mixed-fiber constructions | Select the construction required by your drawing. |
| Ordering dimensions | Equipment | Include units and the applicable drawing revision. |
| Material / configuration | section size | Exact grade and options are confirmed in the quotation. |
Construction & material options

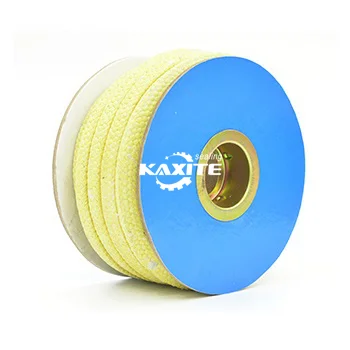

Aramid braid; PTFE-impregnated and mixed-fiber constructions.
Equipment & stuffing-box fit
Identify pump, reciprocating or valve-stem service, then state packing section and shaft or stem diameter. Add fluid, solids, operating conditions and any flush arrangement. Reinforcement and lubricant should match the equipment specification.
Purchasing information
| Minimum order | Quoted by item, size and quantity. List each required size separately. |
|---|---|
| Price / quotation | Itemized quotation based on material, dimensions, processing and quantity. |
| Production lead time | Confirmed after specification and quantity review; include your required date. |
| Samples | Request samples with the RFQ; availability, cost and shipping are confirmed for the item. |
| Shipping terms | State your preferred EXW, FOB or CIF basis and named destination for review. |
| Payment | Payment method and schedule are stated in the quotation or proforma invoice. |
| Custom orders | Drawings and non-standard requirements are reviewed before quotation. |
| Factory visit | Contact Cindy to discuss a factory visit or a remote document review. |
Drawings, inspection & documents
Send the drawing revision and identify the dimensions or properties that need inspection. Request product-specific data sheets, material records and any required testing documents with the RFQ. The quotation should identify which records accompany the selected item.
Request technical documents ↗Product images
Purchasing questions
How do I specify aramid packing for a quote?
Send equipment; section size; media and solids; shaft condition; speed; pressure. Attach the drawing or existing part designation when available. Any unresolved field is identified before the order is confirmed.
Can I order different sizes or a custom version?
List each size and quantity separately. Drawing-based changes are reviewed for material, geometry, tolerances and any tooling needed; availability and minimum quantity depend on the individual item.
What are the minimum order, sample cost and lead time?
Quoted by item, size and quantity. List each required size separately. Confirmed after specification and quantity review; include your required date. Samples and any preparation charges are confirmed with the quotation.
Which documents can accompany the order?
Specify the material, dimensional inspection, traceability and third-party documents required by your project. Availability and scope are confirmed for the selected product rather than assumed from a general certification logo.
