Fit, inspection and installation review
Check the complete assembly drawing rather than only the nominal shaft size. Inspect mating surfaces before fitting the isolator.
Match the housing and shaft interfaces
A bearing isolator needs housing bore, shaft diameter, installed space and orientation together. A nominal shaft size is only one interface. Check the full equipment drawing rather than assuming a similar-looking oil seal is interchangeable.
- Oil Seals: Lip construction and installed width need separate identification.
- Shaft Seals: Name the sealing construction before comparing sizes.
Product identity and drawing requirements
| Specification | Details | Ordering note |
|---|---|---|

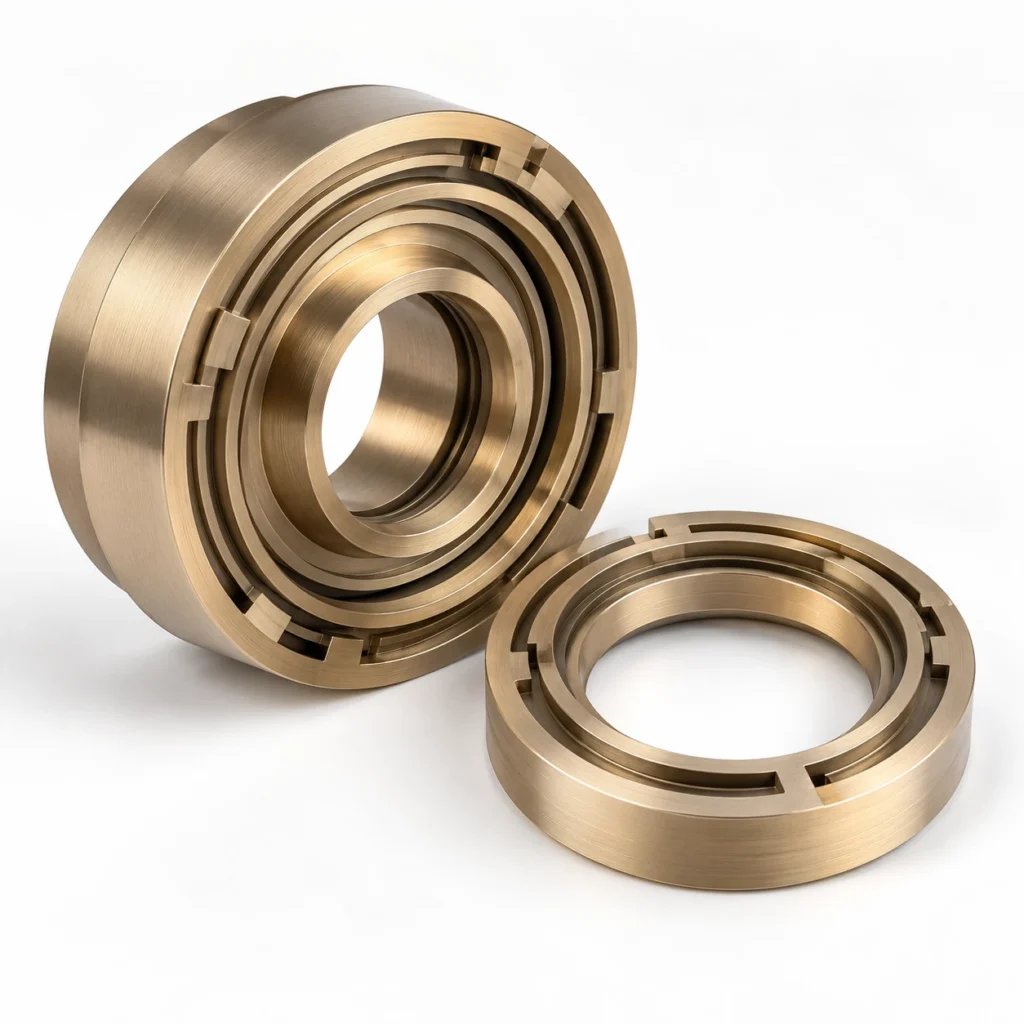

| Product designation | Bearing Isolators | |
| Ordering dimensions and construction | Shaft diameter; housing bore; available space; orientation; operating movement | Use the approved drawing, standard or material designation. |
Custom requirements and quotation scope
Send the bearing isolators specification with the drawing revision and quantity for each item. Include the delivery destination, required date, sample requirements and the documents that must accompany the order.
MOQ, lead time, sample scope and payment terms are confirmed in the itemized quotation. State EXW, FOB or CIF with the named place or port when requesting a shipping basis. Any custom processing, tooling and independent inspection should be identified separately.
Send the specification to Cindy ↗Discuss bearing isolators with Cindy
Contact Kaxite in Ningbo, China with the item list, drawings and delivery requirements.
Request a quotation ↗
